Perfect Solar Panel Angles That Maximize Your Energy Output

Optimize your solar panels’ performance by mastering the precise tilt angle – a critical factor that can help you maximize your energy production by up to 30%. The ideal angle varies significantly across European latitudes, from 30° in southern Spain to 45° in Nordic regions, directly impacting annual energy yield. Modern solar installations demand precise angle calculations based on geographical location, seasonal variations, and local weather patterns to achieve optimal efficiency.

This comprehensive guide delivers precise angle recommendations for every European region, practical adjustment techniques, and innovative mounting solutions that enhance performance year-round. Whether you’re planning a new installation or optimizing existing panels, understanding the science behind solar panel angles transforms average systems into high-performing energy generators. Recent advances in tracking technology and mounting systems have revolutionized how we approach panel positioning, making it easier than ever to achieve premium energy yields through proper angle optimization.

Why Solar Panel Angle Matters

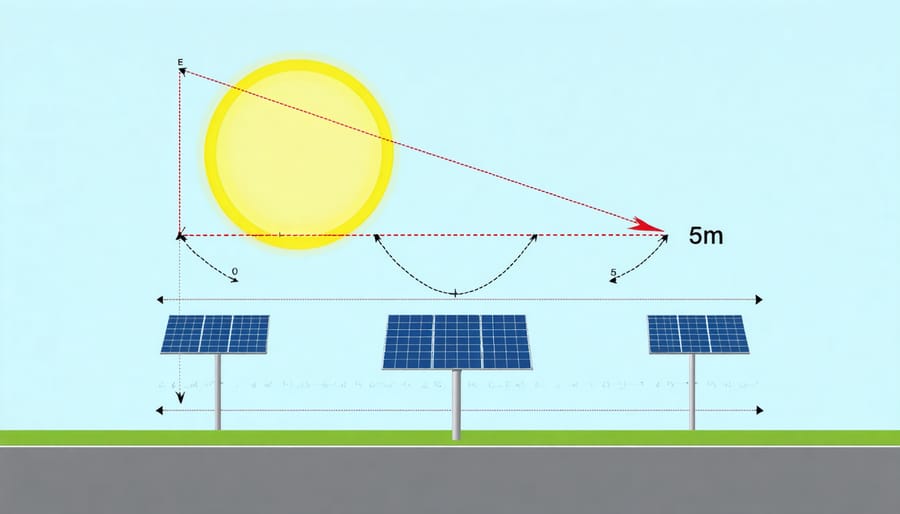

The Science Behind Solar Panel Angles

Solar panels harness energy through the interaction between sunlight and photovoltaic cells, with the angle of installation playing a crucial role in maximising energy capture. When sunlight strikes a solar panel, the efficiency of energy conversion depends significantly on the angle of incidence – the angle between incoming sunlight and the panel’s surface.

The optimal angle allows panels to receive maximum solar radiation throughout the day. Think of it like catching rain in a bucket: a flat bucket (0° angle) catches more rain when directly under a cloud, while a tilted bucket catches more when rain falls at an angle. Similarly, solar panels need different angles to optimise energy capture as the sun’s position changes throughout the day and seasons.

The science behind this involves both direct and diffuse radiation. Direct radiation travels straight from the sun to the panel, while diffuse radiation is sunlight scattered by the atmosphere. The panel’s angle influences how much of each type of radiation it can capture, with steeper angles typically performing better in winter and shallower angles excelling in summer.

Understanding these principles helps ensure optimal energy production year-round, particularly important in European climates where seasonal variations significantly impact solar radiation levels.

Impact on Energy Production

The impact of solar panel angle on energy production can be substantial, with properly angled panels potentially generating up to 40% more energy than poorly positioned installations. In Northern Europe, a solar array tilted at the optimal angle of 35-45 degrees typically produces 1,100-1,300 kWh per kWp annually, compared to just 700-850 kWh for panels installed flat (0 degrees).

Real-world examples demonstrate these efficiency differences clearly. A case study in Germany showed that a 4kW system optimized at 38 degrees generated 4,200 kWh annually, while the same system mounted at 15 degrees produced only 3,360 kWh – a difference of 840 kWh per year. This reduction in efficiency translates to approximately €168 in lost energy production annually (based on average European electricity prices).

Seasonal variations also play a crucial role. During winter months, steeper angles (around 60 degrees) can increase production by up to 25% compared to standard installations, particularly beneficial in snow-prone regions where steeper angles help shed snow and ice. Conversely, summer optimization requires shallower angles around 20-30 degrees, potentially boosting warm-season yield by 10-15%.

Determining Your Optimal Panel Angle

Geographic Location Considerations

Geographic location plays a crucial role in determining the optimal angle for your solar panels across Europe. The general rule of thumb is that your solar panel angle should roughly match your location’s latitude for maximum year-round efficiency. This means that installations in Oslo (59°N) require steeper angles than those in Madrid (40°N).

Northern European regions like Scandinavia typically benefit from steeper angles between 40-60 degrees, which helps capture more sunlight during shorter winter days and compensates for the sun’s lower position in the sky. Central European locations, including Germany, France, and Poland, generally work best with moderate angles between 30-45 degrees.

In Southern Europe, including Spain, Italy, and Greece, shallower angles of 25-35 degrees often prove most effective due to the sun’s higher position throughout the year. However, these regions may benefit from slightly steeper angles to reduce dust accumulation and maximize self-cleaning from rainfall.

Coastal areas might require different considerations compared to inland regions due to varying weather patterns and atmospheric conditions. For example, installations near the Mediterranean coast might benefit from slightly steeper angles to combat salt spray accumulation, while maintaining efficient energy production.

Remember that these are general guidelines, and local factors such as weather patterns, surrounding buildings, and specific climate conditions may necessitate adjustments to these recommended angles.

Seasonal Adjustments

To maximise your solar panels’ efficiency throughout the year, regular seasonal adjustments are essential. In Europe, the sun’s position varies significantly between seasons, affecting the optimal tilt angle for your panels.

During summer months (June-August), when the sun travels a higher arc across the sky, adjust your panels to a shallower angle between 20-35 degrees. This configuration captures more direct sunlight during longer daylight hours. For spring (March-May) and autumn (September-November), a medium tilt of 35-45 degrees typically yields the best results.

Winter requires the steepest angle adjustments, usually between 45-65 degrees, to compensate for the sun’s lower position. This steeper angle helps capture maximum available sunlight and assists with snow shedding in applicable regions.

For most European installations, we recommend adjusting your panels’ tilt angle at least four times per year, coinciding with the seasonal changes. Some advanced mounting systems allow for automated adjustments, though manual systems remain highly effective when properly maintained and adjusted.

Remember that these are general guidelines; your specific location’s latitude and local weather patterns may necessitate slight modifications to these recommended angles.

Local Weather Patterns

Local weather patterns significantly influence the optimal angle for your solar panels, requiring thoughtful adjustments to standard calculations. In regions with frequent rainfall, a steeper tilt angle (typically 5-10 degrees more than the standard recommendation) helps with natural panel cleaning and prevents water accumulation. This self-cleaning effect is particularly valuable in northern European countries where precipitation is common.

Snow-prone areas benefit from even steeper angles, usually 40-60 degrees, allowing snow to slide off more easily and maintaining energy production during winter months. This consideration is especially relevant in Alpine regions and Scandinavian countries.

Coastal areas present unique challenges due to salt spray and strong winds. Here, a slightly lower tilt angle might be preferable to reduce wind resistance while maintaining optimal energy capture. However, this must be balanced against the need for sufficient tilt to prevent salt buildup.

Consider seasonal weather variations in your calculations. Areas with distinct wet and dry seasons might benefit from bi-annual angle adjustments to maximize efficiency throughout the year. For accurate regional recommendations, consult local meteorological data and experienced solar installers familiar with your specific climate zone.

Installation and Adjustment Tips

Mounting Systems and Angle Options

Modern solar mounting systems offer various solutions to achieve optimal panel angles for maximum energy yield. Fixed mounting systems are the most common choice for residential installations, providing a permanent tilt angle that’s optimized for your specific location. These systems typically include roof-mounted rails, ground-mounted frames, or flat-roof tilt systems.

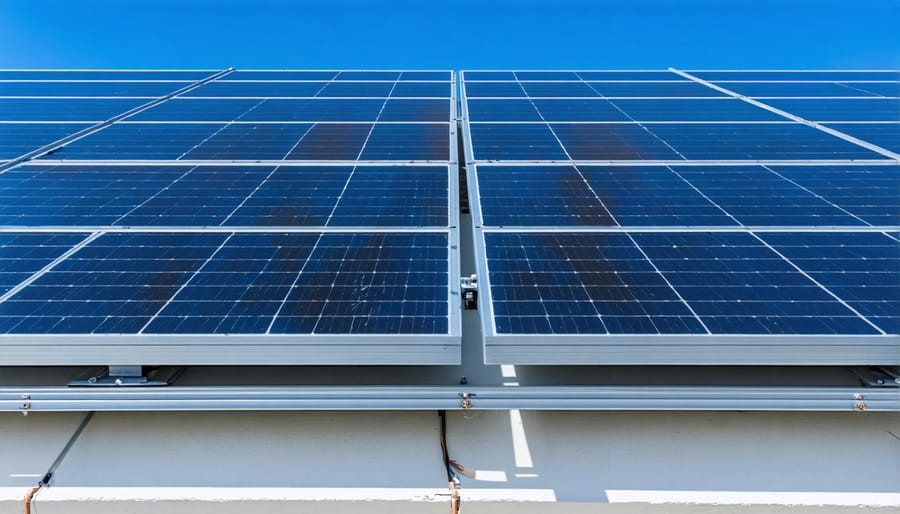

Adjustable mounting solutions allow for seasonal angle modifications, offering enhanced performance through manual adjustments typically done 2-4 times per year. These systems feature pivot points and adjustable brackets that enable angle changes without requiring complete reinstallation.

Single-axis tracking systems automatically adjust the panels’ tilt throughout the day, following the sun’s path from east to west. While more expensive than fixed systems, they can increase energy yield by 25-35% compared to fixed installations. Dual-axis trackers offer maximum optimization by adjusting both the horizontal and vertical angles, though they’re primarily used in commercial installations due to their complexity and cost.

For flat roofs, ballasted mounting systems provide an excellent solution, using weighted bases to secure panels at the desired angle without penetrating the roof surface. Wall-mounted systems are another option for buildings with limited roof space, though careful consideration must be given to the building’s structural capacity and local planning regulations.

Professional Installation Considerations

When working with professional installers, clear communication about solar panel angles is crucial for optimal system performance. Start by discussing your specific requirements and local conditions with your installation team. Experienced installers should be familiar with proper installation techniques and regional considerations that affect panel positioning.

Request detailed documentation of the proposed installation angles and ask your installer to explain their reasoning. They should consider factors such as your roof’s structural integrity, local building codes, and potential shading issues. A professional assessment should include computer modeling to demonstrate expected energy yields at different angles.

Ensure your installer provides a written guarantee that covers both the installation work and the predicted system performance. They should also explain any compromises between optimal theoretical angles and practical constraints of your specific situation. Many European installers use sophisticated mounting systems that allow for angle adjustments post-installation, which can be valuable for seasonal optimization.

Don’t hesitate to ask for references from previous installations in your area, particularly those with similar roof configurations. Professional installers should also provide maintenance recommendations specific to your chosen panel angle, including cleaning schedules and snow removal procedures where applicable. Remember to discuss future adjustment possibilities and ensure access points are incorporated into the installation design.

Monitoring and Maintenance

Maintaining optimal solar panel angles isn’t a one-time setup – it requires ongoing attention to ensure maximum energy production throughout the system’s lifetime. While modern solar installations often feature automated tracking systems, even fixed installations need periodic monitoring and adjustments to maintain peak performance.

It’s essential to conduct quarterly checks of your panel angles, particularly after severe weather events that might have affected the mounting structure. These inspections should be part of your regular maintenance requirements to ensure sustained efficiency.

Create a maintenance calendar that includes:
– Monthly visual inspections of mounting hardware
– Quarterly verification of tilt angles using an inclinometer
– Seasonal adjustments (if manual adjustments are part of your setup)
– Documentation of angle measurements and any changes made

For maximum precision, consider investing in digital angle measuring tools, which provide accurate readings and can help track changes over time. Some smart monitoring systems can alert you when panels deviate from their optimal angles, allowing for prompt adjustments.

Keep detailed records of angle measurements and energy production data. This information helps identify potential issues early and validates that your angle settings remain optimal for your location. If you notice unexpected drops in energy production, checking panel angles should be one of your first diagnostic steps.

Remember that mounting brackets can settle or shift slightly over time, especially in areas with frequent temperature fluctuations or on roofs that may experience subtle structural movements. Regular monitoring ensures these small changes don’t accumulate into significant performance losses.

Optimizing your solar panel angle is a crucial step in maximizing the performance of your solar energy system. Throughout this guide, we’ve explored how factors such as geographical location, seasonal variations, and mounting options significantly impact your installation’s efficiency. For European installations, the general rule of positioning panels between 30-45 degrees serves as a reliable starting point, though your specific location may require adjustments.

Remember that proper angle optimization can increase energy yield by up to 25%, making it a vital consideration in your solar project planning. Whether you’re in sunny southern Spain or the Nordic regions, understanding and implementing the correct tilt angle ensures you get the most from your investment.

Take action today by assessing your specific requirements, consulting local solar experts, and considering seasonal adjustments if applicable. With advancing solar technology and increasing energy costs, optimizing your panel angle is a simple yet effective way to enhance your system’s performance and contribute to Europe’s sustainable energy future. Your thoughtful approach to installation will reward you with improved efficiency and reliable renewable energy generation for years to come.
